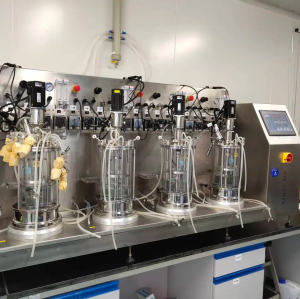

Vessel
l The volume is 1~10L, which can be customized freely.
l Round bottom design, more precise processing and better mixing.
l Single-wall glass vessel with electric heating blanket or double-wall with jacketed water circulation can be selected.
l Equipped with a customized stirring system, mechanical or magnetic stirring, and different types of stirring paddles can be replaced.
50 gallon fermenter
Controller
l 10″ touch screen, easy to understand and use.
l Controller combines measurement and control hardware for excellent process control.
l Standard with 4 peristaltic pumps, the functions of each peristaltic pump can be switched, and external pumps can be configured.
l With external chiller for optional, you don't have to worry about finding a suitable cooling water source for your bioreactor.
Control System
l With mature, stable, universal Siemens PLC control system to realize automatic control.
l With the functions of real-time display, data recording, data analysis, output printing, password management, abnormal analysis, overlimit alarm, etc.
l With USB interface, and data can be copied directly by USB.
l Running modes:
Manual control: You can open valve or set the percentage of valve opening.
Automatic control: You can select continuous or PID control the switch.
Sequence control: The control of all parameters can be pre-set at least 10 control sections.
Automatic segmentation remotely control: PC control.
Related control: Rotating speed & dissolved oxygen, gasing & dissolved oxygen, feeding & pH, etc.
Volume | 1~10L (optional) |
Load rate | 30%~70% |
Vessel material | Borosilicate glass |
Illuminance | 100~10,000lux, adjustable |
Gassing | Standard: one air intake Optional: multiple air intakes |
Gas control | Standard: rotor flowmeter (manual) Optional: mass flowmeter (automatic) |
Sterilization | In autoclave |
Basic control | Temperature, rotating speed, pH, DO, antifoam, feeds |
Peristaltic pump | Standard 4 pcs |
Stirring mode | Standard: mechanical stirring Optional: magnetic stirring |
